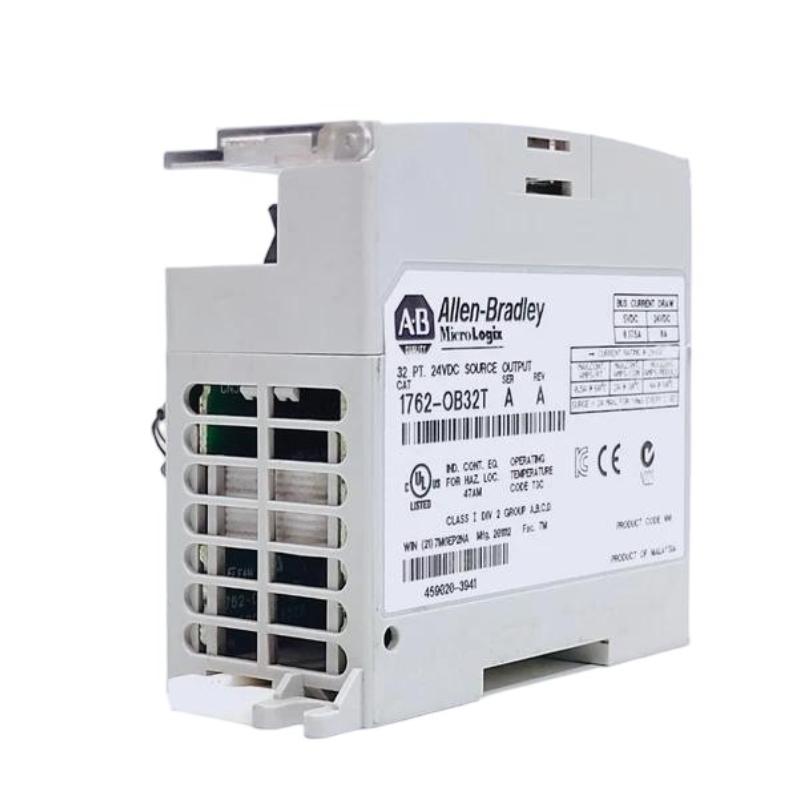

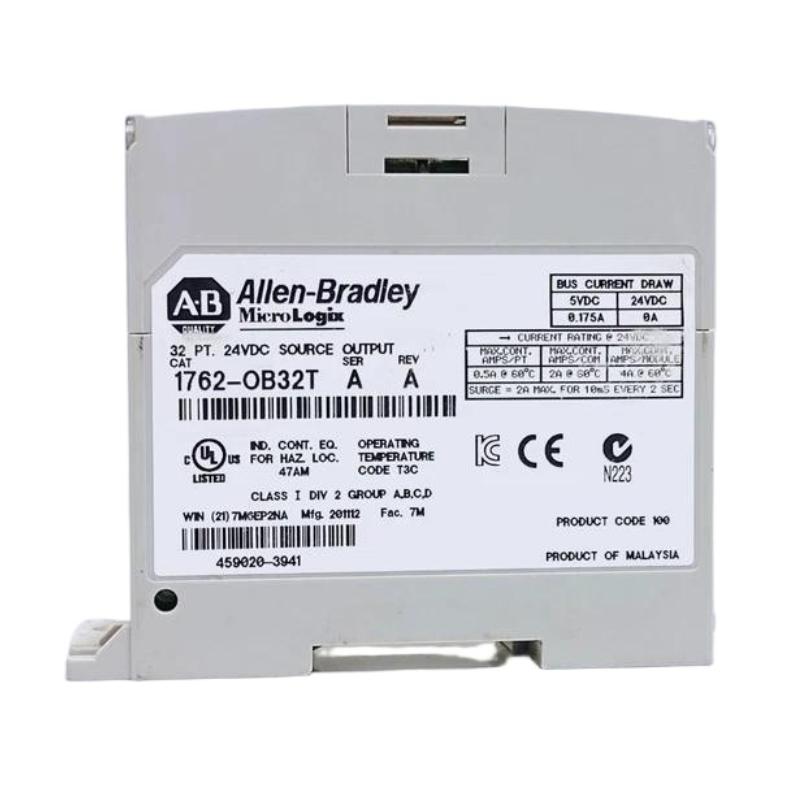

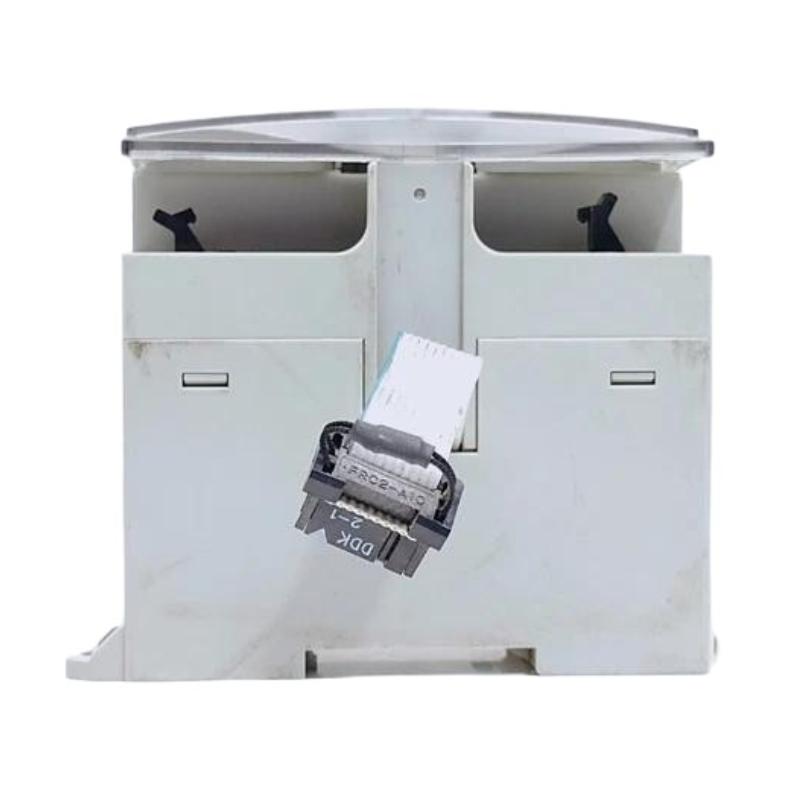

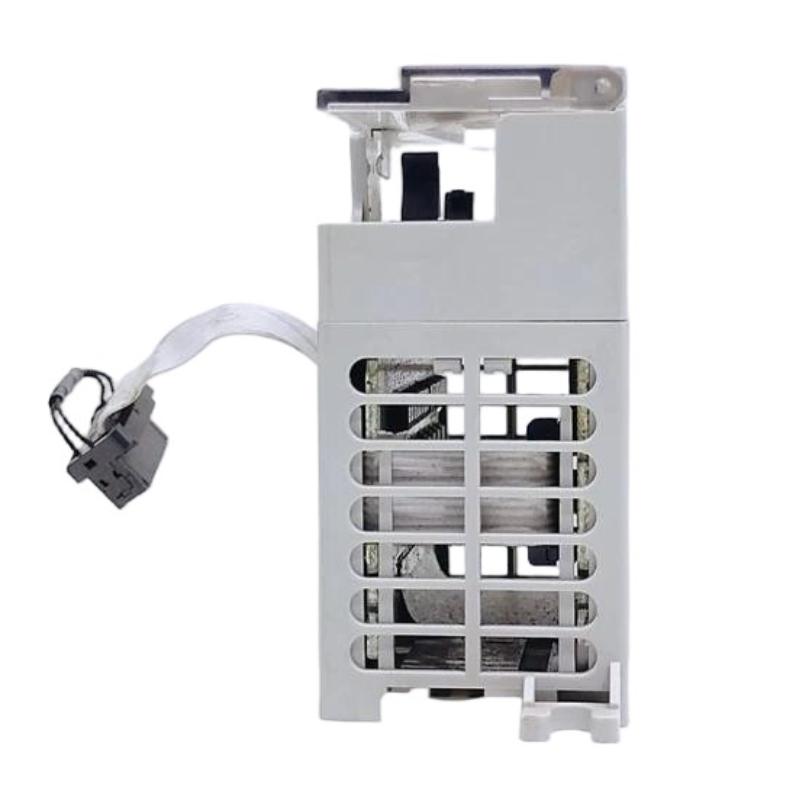

Allen Bradley 1762-OB32T MicroLogix 32-Point Solid-State DC Power Output Module

Overview
The Allen-Bradley 1762-OB32T is a high-density 32-point solid-state DC output module designed for MicroLogix 1200 and MicroLogix 1500 systems. It provides reliable and fast switching control for industrial automation applications, supporting efficient operation of actuators, indicators, and control devices.

General Information
Part Number: 1762-OB32T

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: MicroLogix 1200 / 1762 Expansion I/O

Type: Digital Solid-State DC Output Module

Output Points: 32 channels

Output Type: DC transistor outputs

Installation: DIN rail mounted expansion module

Configuration: Software-based via MicroLogix programming tools

Power Specifications
Supply Voltage: 24 V DC (output load dependent)

Backplane Power: Supplied via MicroLogix controller system

Power Consumption: Low module-level consumption

Protection: Short-circuit and surge protection

Isolation: Optical isolation between logic and field circuits

Communication & Interface
Backplane Communication: MicroLogix proprietary expansion bus

Output Control: PLC-driven ON/OFF switching

Response Time: High-speed electronic switching

Diagnostics: Individual channel status LEDs for monitoring

Programming Interface: RSLogix 500 / MicroLogix configuration tools

Environmental
Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade durability

Protection Rating: Cabinet-mounted open-type module

Dimensions & Weight
Dimensions (L × W × H): 90 × 40.4 × 87 mm

Weight: 0.2 kg

High-Density Output Control, Fast and Reliable Performance
