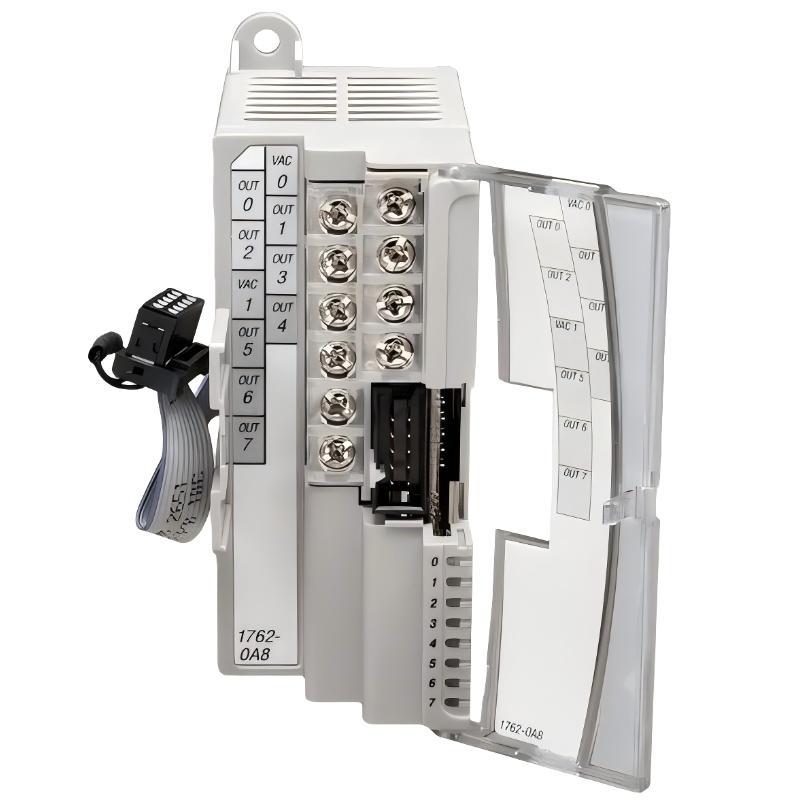

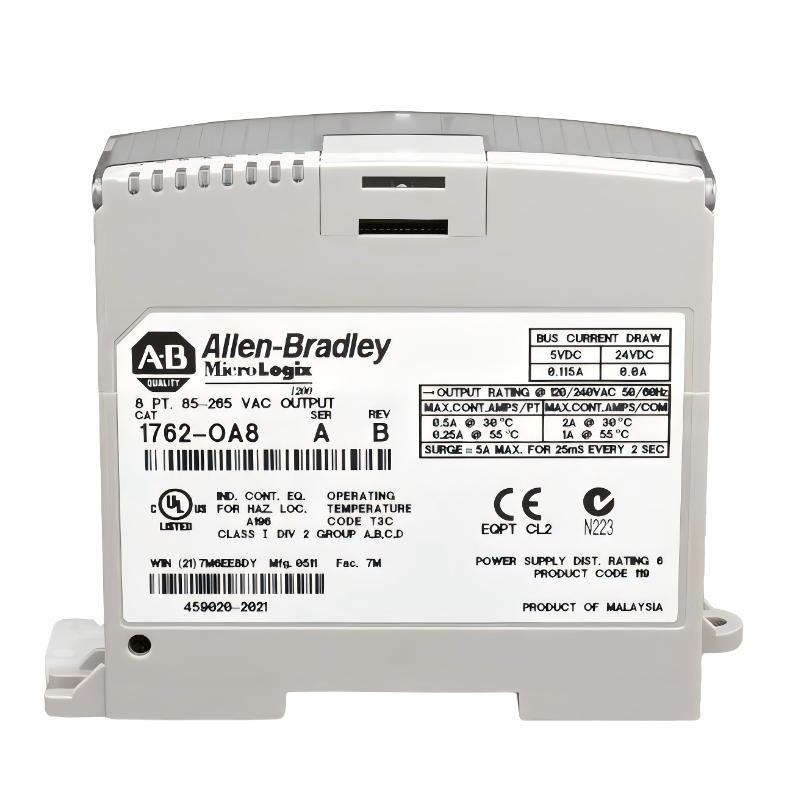

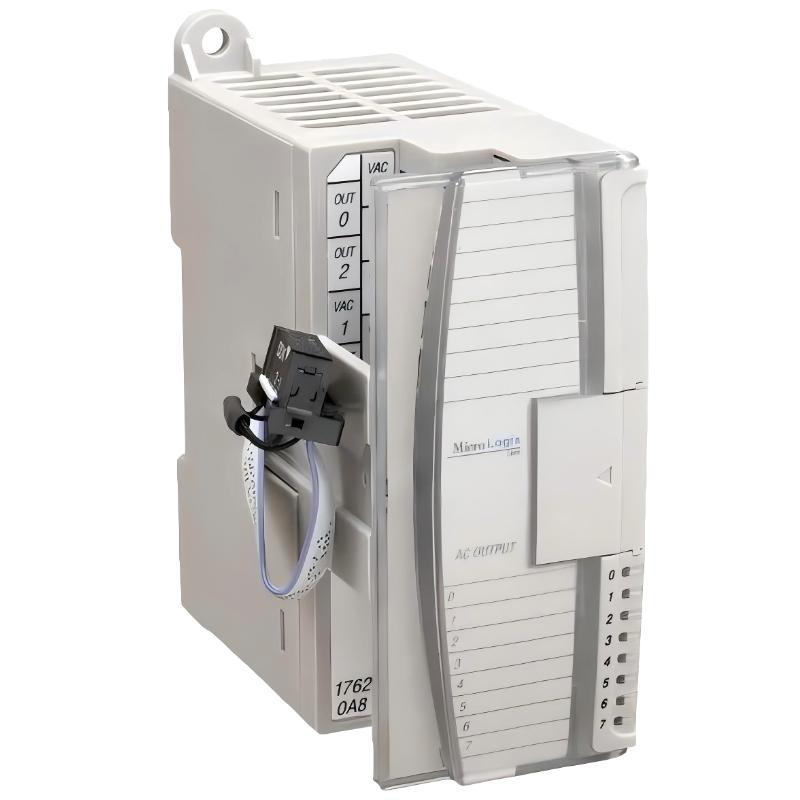

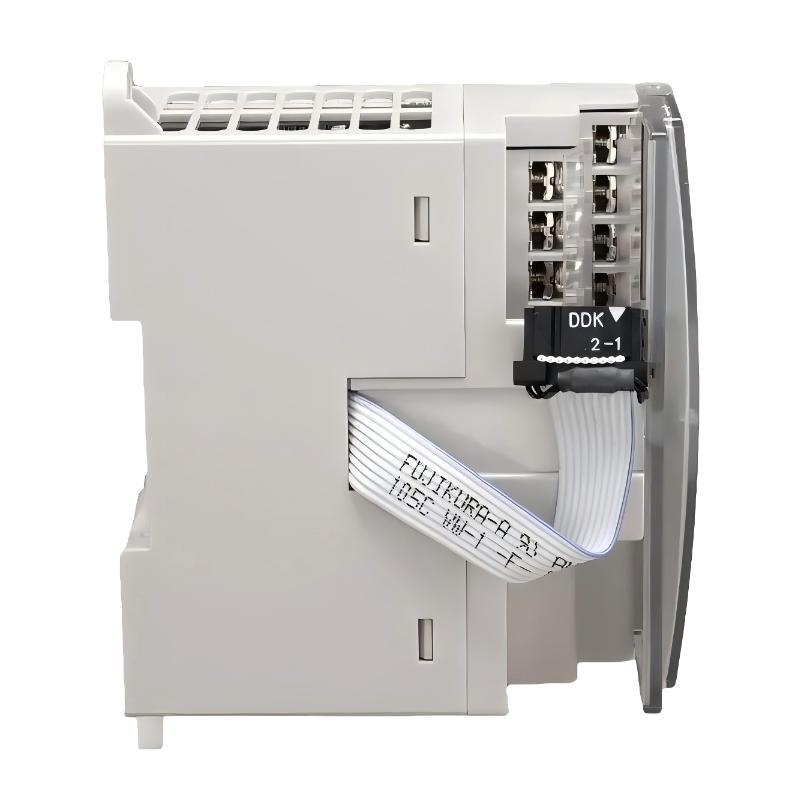

Allen Bradley 1762-OA8 MicroLogix 8-Point Digital Solid-State Output Module

Overview
The Allen-Bradley 1762-OA8 is a compact 8-point digital output module designed for MicroLogix 1200 and MicroLogix 1500 systems. It provides reliable solid-state AC output control for industrial automation applications, enabling precise switching of external loads such as relays, indicators, and actuators.

General Information
Part Number: 1762-OA8

Manufacturer: Allen-Bradley (Rockwell Automation)

Brand: Allen-Bradley

Country of Origin: USA

Series: MicroLogix 1200 / 1762 Expansion I/O

Type: Digital Solid-State Output Module

Output Points: 8 channels

Output Type: AC solid-state outputs

Installation: DIN rail mounted expansion module

Configuration: Software-based via MicroLogix programming tools

Power Specifications
Supply Voltage: 85–264 V AC (output load dependent)

Backplane Power: Supplied from MicroLogix system

Power Consumption: Low module-level consumption

Protection: Over-voltage and transient suppression

Isolation: Optical isolation between field and logic circuits

Communication & Interface
Backplane Communication: MicroLogix proprietary expansion bus

Output Control: Digital ON/OFF switching via PLC logic

Response Time: Fast solid-state switching

Diagnostics: Status LED indicators per channel

Programming Interface: RSLogix 500 / MicroLogix software

Environmental
Operating Temperature: 0 to +55 °C

Storage Temperature: −40 to +85 °C

Humidity: 5% to 95% non-condensing

Vibration Resistance: Industrial-grade durability

Protection Rating: Cabinet installation (open-type module)

Dimensions & Weight
Dimensions (L × W × H): 90 × 40.4 × 87 mm

Weight: 0.215 kg
