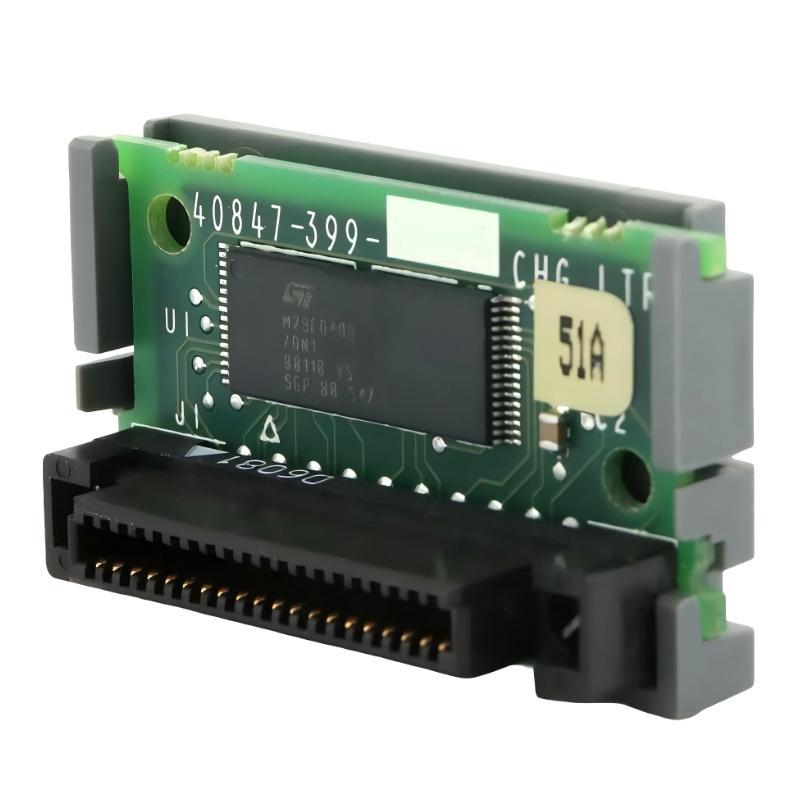

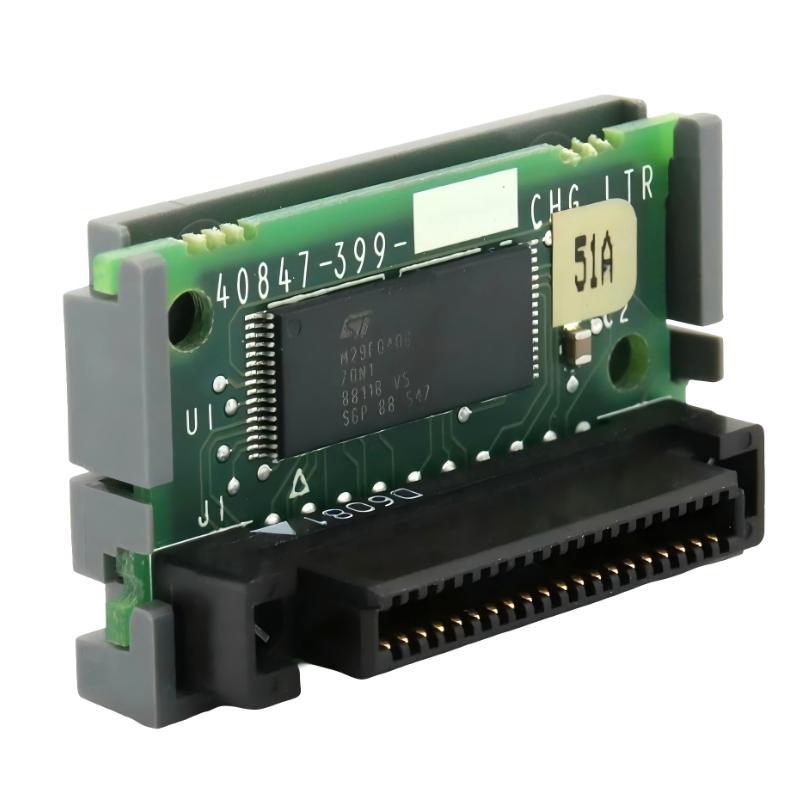

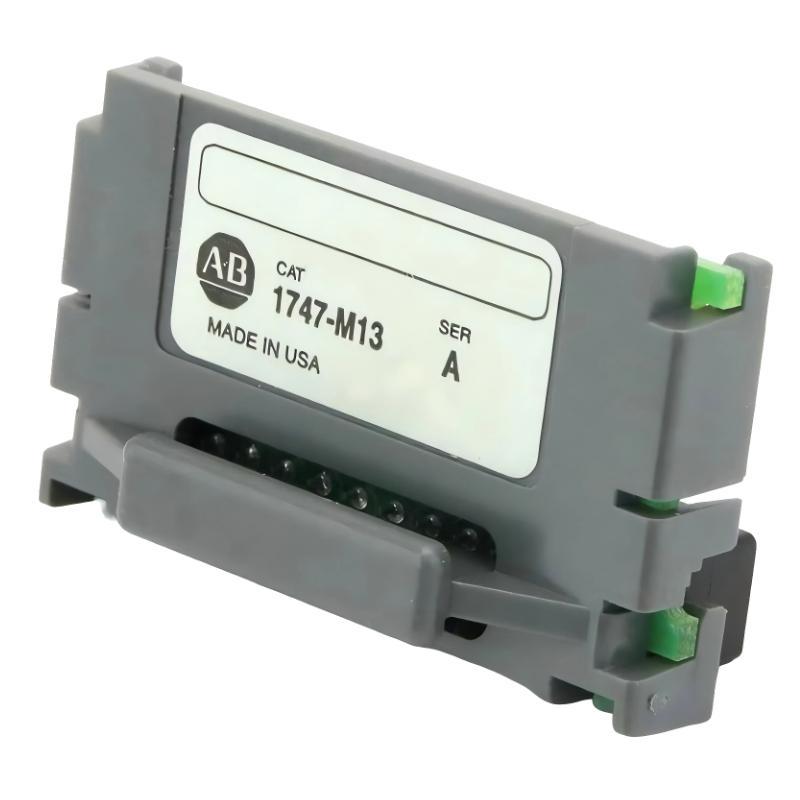

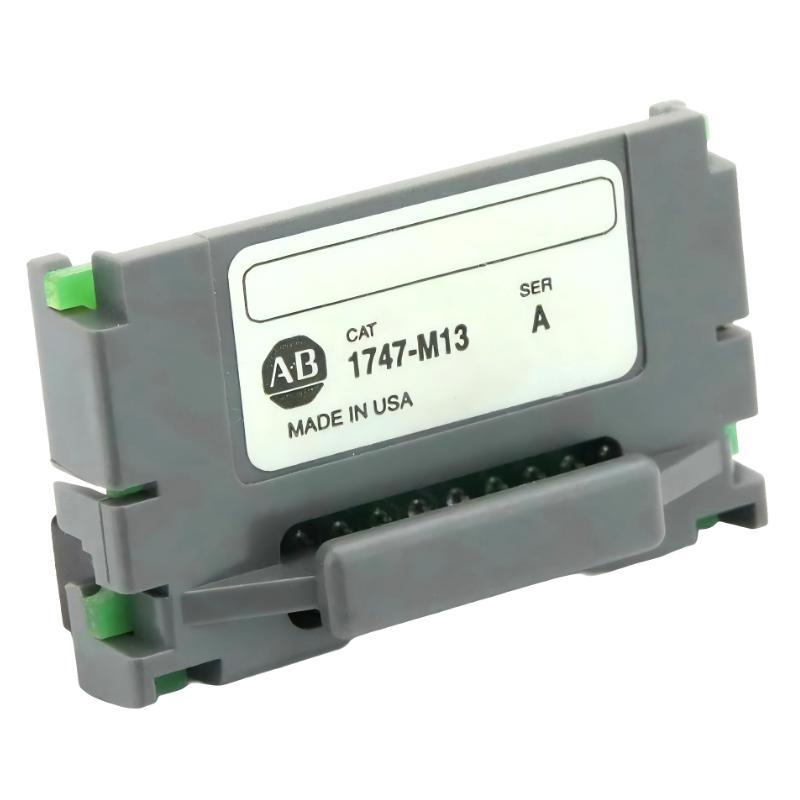

Allen Bradley 1747-M13 EEPROM Storage Module

Overview

The Allen Bradley 1747-M13 is a dependable EEPROM storage module designed for the SLC 500 PLC platform. It provides secure non-volatile memory storage for control programs and system data, helping maintain critical information during power outages or system shutdowns. The module is suitable for industrial automation systems requiring reliable program backup and data retention.

General Information

Part Number: 1747-M13

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / United States

Series: SLC 500

Type: EEPROM Storage Module

Mounting: Installed directly into compatible SLC 500 CPU modules

Technology: EEPROM non-volatile memory for program and data backup

Power Specifications

Supply Voltage: Powered through SLC 500 CPU interface

Power Consumption: Minimal power requirement

Protection Features: Built-in memory protection and data retention support

Indicators: Memory activity and status indication supported through CPU diagnostics

Communication & Interface

Communication Interface: Direct CPU memory interface connection

Memory Function: Stores PLC programs, configuration parameters, and application data

Diagnostics: Memory verification and integrity monitoring

Operator Interface: Compatible with CPU diagnostic functions

Reset Capability: Supports CPU-controlled memory operations and reset functions

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −20 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Designed for industrial environments

Protection Rating: IP20 when installed in suitable enclosure

Dimensions & Weight

Dimensions (L × W × H): 85 × 45 × 15 mm

Weight: Approximately 0.5 kg
