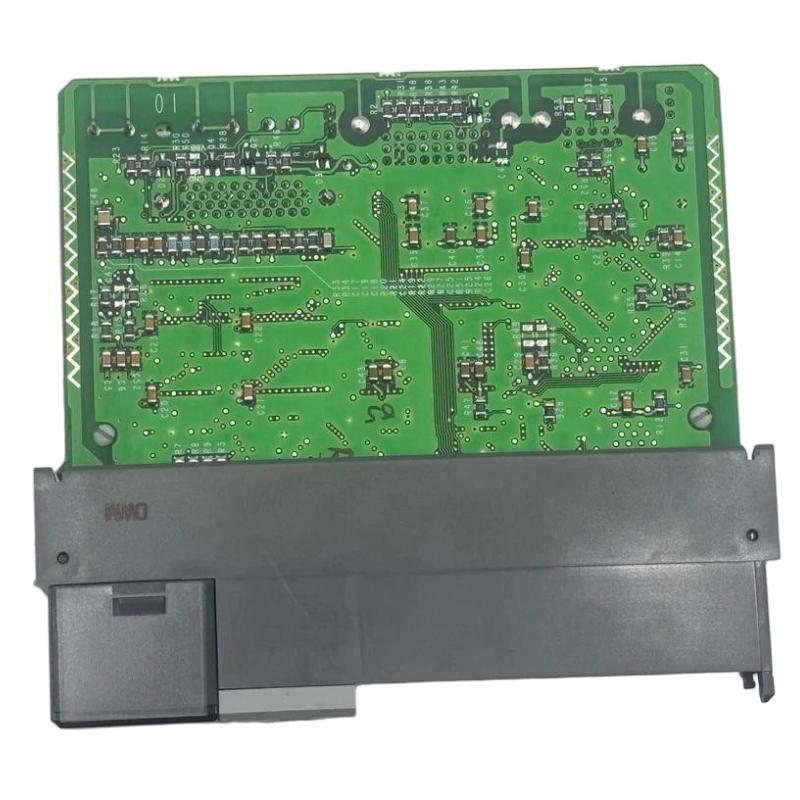

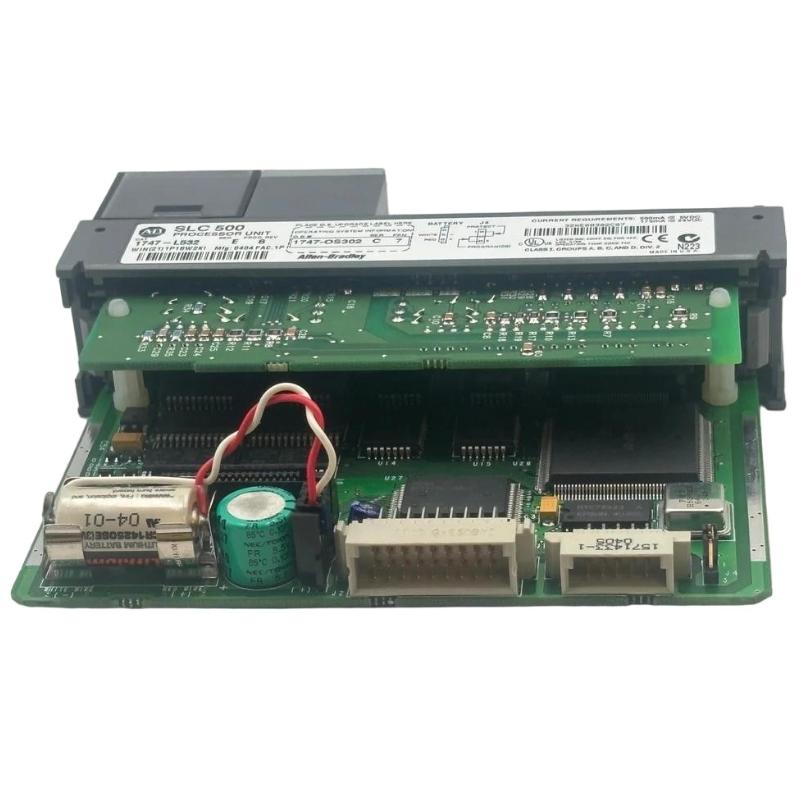

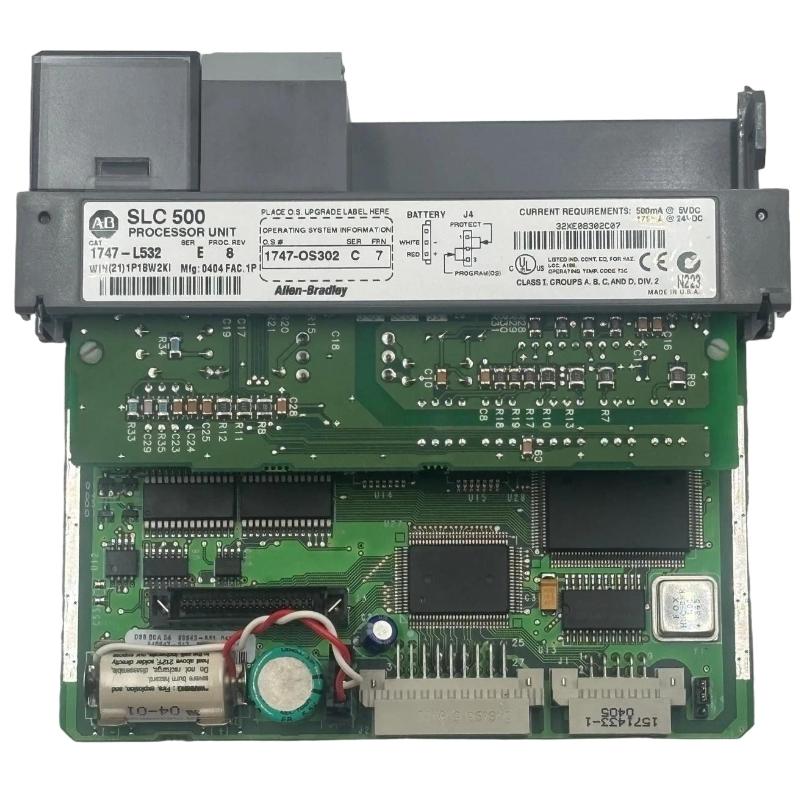

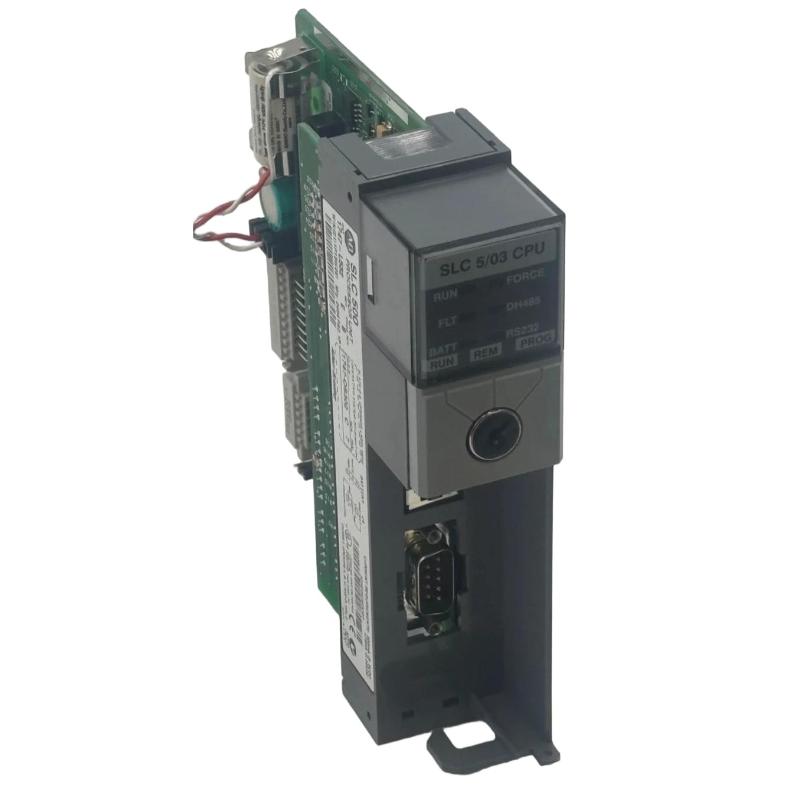

Allen Bradley 1747-L532 CPU Processor Unit Module

Overview

The Allen Bradley 1747-L532 is a reliable CPU processor unit designed for the SLC 500 PLC platform. It delivers efficient control processing, stable communication performance, and dependable operation for industrial automation systems. The module is widely used in manufacturing, packaging, and machine control applications requiring consistent and accurate PLC performance.

General Information

Part Number: 1747-L532

Manufacturer: Allen Bradley

Brand / Country of Origin: Allen Bradley / United States

Series: SLC 500

Type: CPU Processor Unit Module

Mounting: Rack-mounted installation in SLC 500 chassis

Technology: Microprocessor-based programmable controller with integrated diagnostics and memory management

Power Specifications

Supply Voltage: 5 V DC via chassis backplane

Power Consumption: Approximately 4.3 W

Power Source: Backplane-powered design

Protection Features: Built-in overload and short-circuit protection

Status Indicators: LED indicators for RUN, FLT, BATT, and communication status

Communication & Interface

Communication Port: Integrated RS-232 serial interface

Network Support: Compatible with DH-485 communication networks

Processor Function: Executes control logic and manages connected I/O modules

Diagnostics: Processor fault monitoring, memory diagnostics, and communication status detection

Operator Interface: Front-panel LED indicators and memory module support

Reset Capability: Supports hardware and software reset functions

Environmental

Operating Temperature: 0 °C to +60 °C

Storage Temperature: −40 °C to +85 °C

Humidity: 5% to 95% RH, non-condensing

Vibration Resistance: Suitable for industrial operating environments

Protection Rating: IP20 when installed in an industrial enclosure

Dimensions & Weight

Dimensions (L × W × H): 144.5 × 34.6 × 130.18 mm

Weight: 0.25 kg
