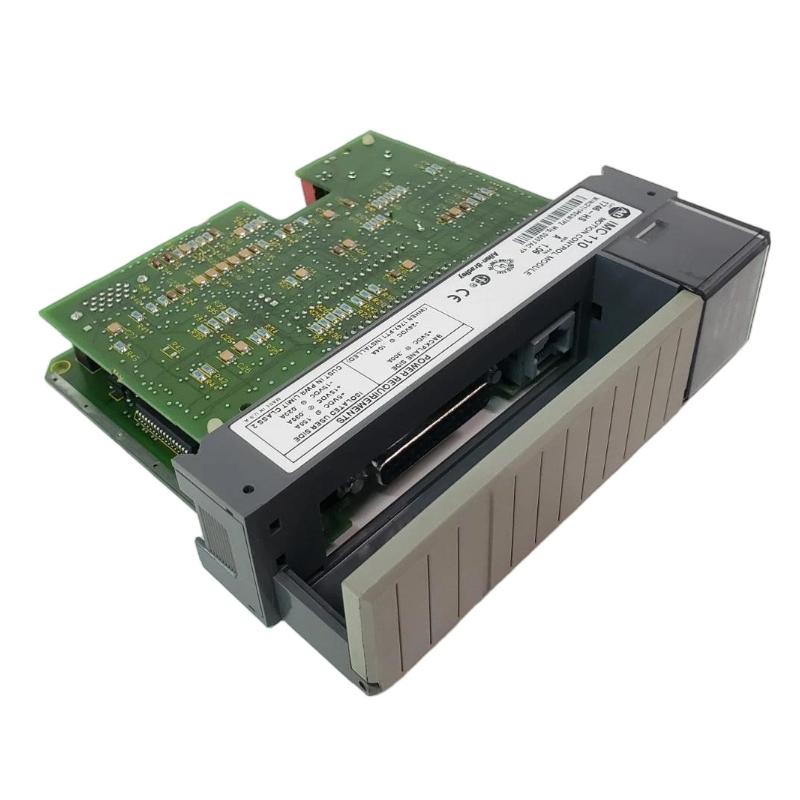

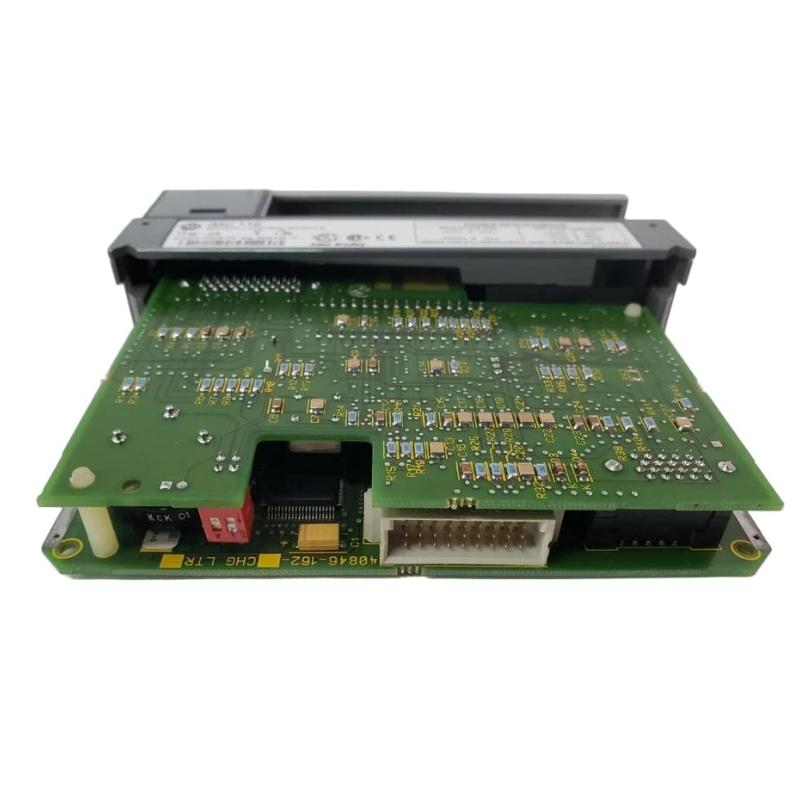

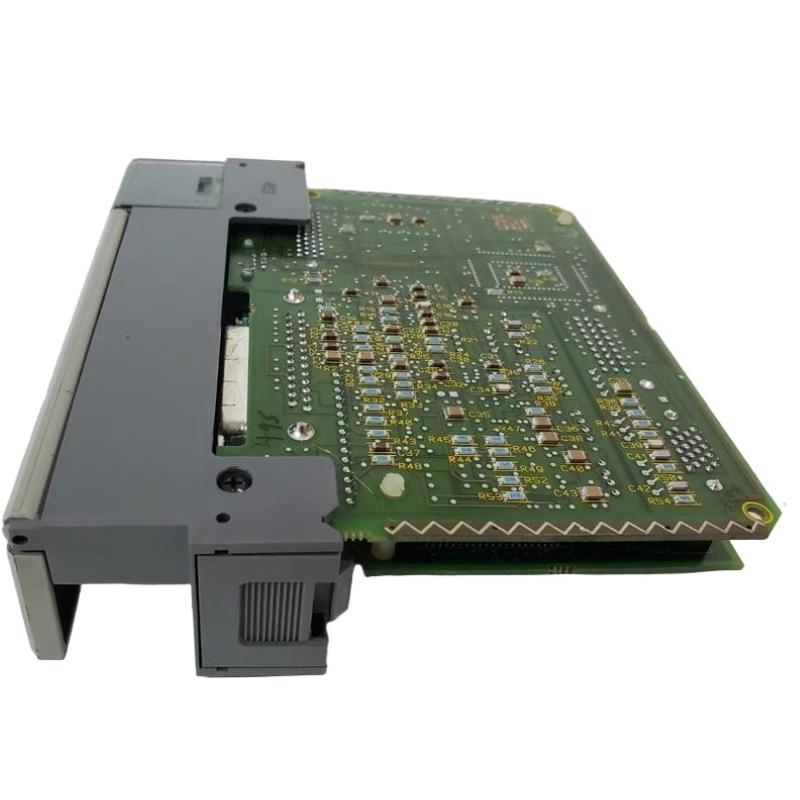

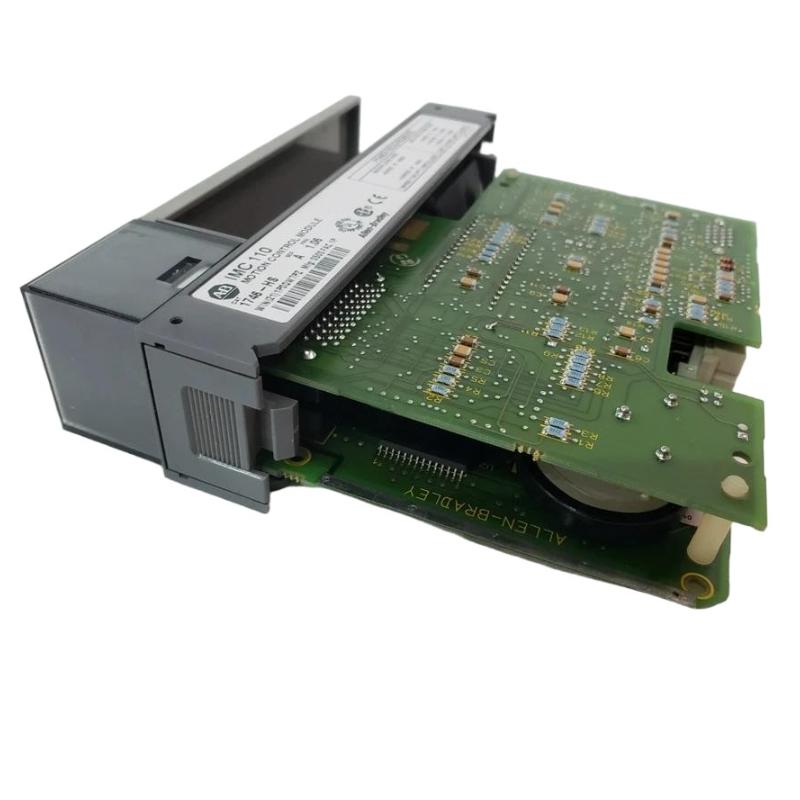

Allen Bradley 1746-HS SLC 500 Motion Control Module
| Release time | May 19, 2026 |
|---|---|
| Brand | Allen Bradley PLC |
| Product Numbe | 1746-HS |
| Country Of Origin | USA |
| Dimensions | 144.5 × 34.6 × 130.18 mm |
| Weight | 0.141 kg |
| Condition | New & In Stock |
| Payment Methods | T/T, PayPal, Western Union |
| Lead Time | 1-3 Working Days |
| Warranty | One Year |
| Courier partners | DHL, UPS, TNT, FedEx and EMS. |
- Product Details
- Frequently FAQ
- Contact Us
- Argument
- Score
Overview
The 1746-HS is a motion control module for the Allen Bradley SLC 500 system, designed to control and coordinate servo and stepper motors in industrial automation applications. It enables precise motion control, high-speed operation, and synchronized positioning for complex machinery.
General Information
Part Number: 1746-HS
Manufacturer: Allen Bradley
Brand / Country of Origin: Rockwell Automation / USA
Series: SLC 500
Type: Motion Control Module
Mounting: Panel or rack mounting within SLC 500 chassis
Technology: High-speed motion control, pulse train output, synchronized positioning
Power Specifications
Supply Voltage: 5 V DC / 24 V DC (backplane powered)
Power Consumption: ≤ 2 W
Input: Powered via SLC 500 backplane
Protection: Reverse-polarity and short-circuit protection
Indicators: LEDs for module status, motion activity, and fault
Communication & Interface
Interface: SLC 500 backplane
Motion Channels: Supports multiple pulse train outputs for motor control
Data Rate: High-speed signal processing for precise motion
Diagnostics: Module and channel fault detection
Operator Interface: Status LEDs for motion activity and errors
Reset Features: Supports software or controller-initiated reset
Environmental
Operating Temperature: 0 to 60 °C
Humidity: 5–95% RH, non-condensing
Protection Rating: IP20 (suitable for industrial enclosures)
Vibration / Shock: Meets industrial-grade standards
Dimensions & Weight
Dimensions (L × W × H): 144.5 × 34.6 × 130.18 mm
Weight: ~ 0.141 kg
