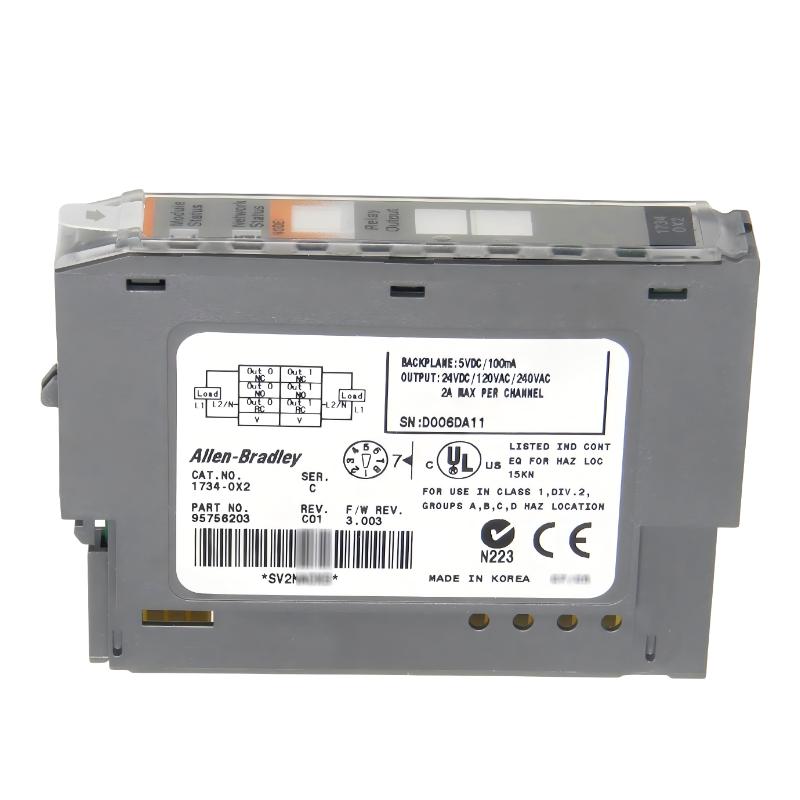

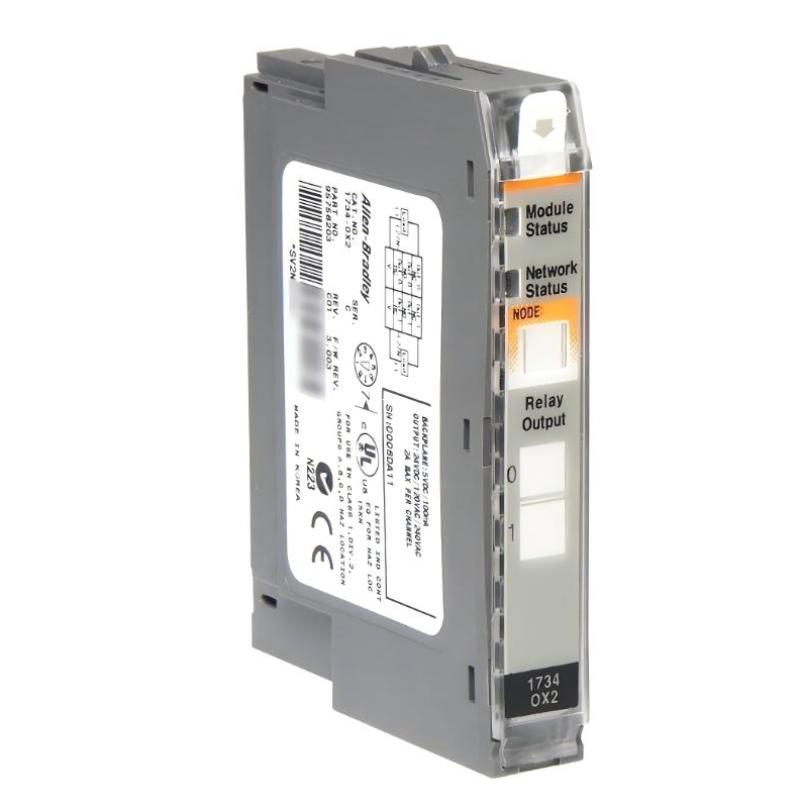

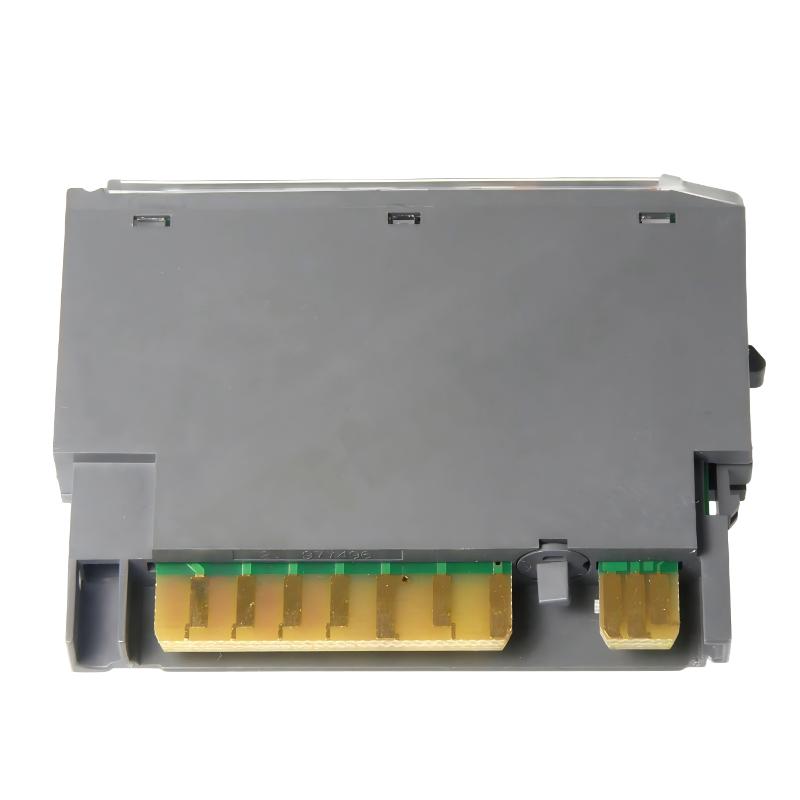

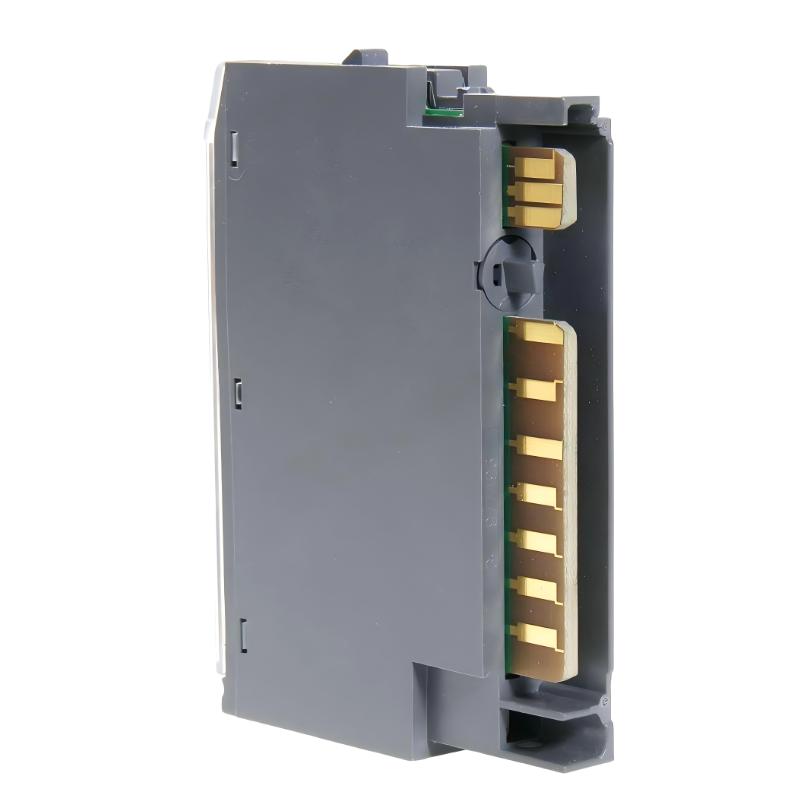

Allen Bradley 1734-OX2 Point I/O Relay Digital Contact Output Module

Overview

The Allen Bradley 1734-OX2 is a Point I/O relay digital contact output module designed to control two discrete relay outputs in industrial automation systems. It provides reliable switching for solenoids, lamps, and other devices requiring contact outputs, delivering precise and safe operation. The module integrates seamlessly with CompactLogix and other Allen Bradley controllers for efficient automation control.

General Information

Part Number: 1734-OX2

Manufacturer: Allen Bradley

Brand / Country of Origin: Rockwell Automation / USA

Series: Point I/O

Type: Relay Digital Contact Output Module

Mounting: DIN rail or standard Point I/O backplane

Technology: Relay contact output, LED status indication, short-circuit and overload protection

Power Specifications

Supply Voltage: 24 V DC

Power Consumption: ≤ 3 W

Output Protection: Short-circuit and overload protection

Indicators: Status LEDs for each output channel and module health

Communication & Interface

Bus Interface: Point I/O backplane connection

I/O Channels: 2 discrete relay digital outputs

Output Logic: Relay contact switching

Diagnostics: Channel fault detection and status reporting

Operator Interface: LED indicators for output status and module diagnostics

Reset Features: Supports module reset via software or backplane

Environmental

Operating Temperature: −20 to +70 °C

Humidity: 5–95% RH, non-condensing

Protection Rating: IP20, suitable for industrial enclosure use

Dimensions & Weight

Dimensions (L × W × H): 77.5 × 12.1 × 56.6 mm

Weight: ~0.037 kg
